RF系列减速机外形尺寸

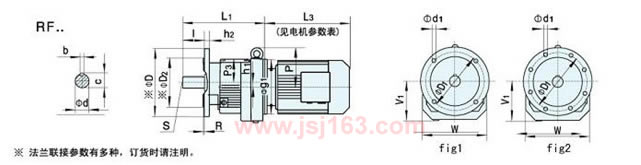

1.RF17减速机～RF167减速机外形尺寸/mm
| 型号 | D | D2 | D1 | R | h2 | l | V1 | L1 | d | b | c | P3 | P | W | fig | d1 | S |
| RF17 | 120 | 80j6 | 100 | 3 | 8 | 40 | 75 | 207 | 20k6 | 6 | 22.5 | 59 | - | 130 | 1 | 6.5 | M6 |
| RF27 | 140 | 95j6 | 115 | 3 | 8 | 50 | 92 | 199 | 25k6 | 8 | 28 | 57 | - | 142 | 1 | 6.5 | M10 |
| RF37 | 120 | 80j6 | 100 | 3 | 8 | 50 | 94 | 207 | 25k6 | 8 | 28 | 61 | - | 161 | 1 | 6.5 | M10 |
| RF47 | 140 | 95j6 | 115 | 3 | 10 | 60 | 118 | 235 | 30k6 | 8 | 33 | 72 | - | 178 | 1 | 9 | M10 |
| RF57 | 160 | 110j6 | 130 | 3.5 | 10 | 70 | 121 | 257 | 35k6 | 10 | 38 | 72 | - | 202 | 1 | 9 | M12 |
| RF67 | 200 | 130j6 | 165 | 3.5 | 12 | 70 | 134 | 280 | 35k6 | 10 | 38 | 82 | 113 | 215 | 1 | 11 | M12 |
| RF77 | 250 | 180j6 | 215 | 4 | 15 | 80 | 144 | 300 | 40k6 | 12 | 43 | 88 | 129 | 235 | 1 | 13.5 | M16 |
| RF87 | 300 | 230j6 | 265 | 4 | 18 | 100 | 184 | 372 | 50k6 | 14 | 53.5 | 115 | 165 | 297 | 1 | 13.5 | M16 |
| RF97 | 350 | 250h6 | 300 | 5 | 18 | 120 | 230 | 440 | 60m6 | 18 | 64 | 144 | 193 | 349 | 1 | 17.5 | M20 |
| RF107 | 350 | 250h6 | 300 | 5 | 20 | 140 | 255 | 495 | 70m6 | 20 | 74.5 | 158 | 224 | 409 | 1 | 17.5 | M20 |
| RF137 | 450 | 350h6 | 400 | 5 | 22 | 170 | 320 | 589 | 90m6 | 25 | 95 | 180 | 247 | 458 | 2 | 17.5 | M24 |
| RF147 | 450 | 350h6 | 400 | 5 | 22 | 210 | 361 | 695 | 110m6 | 28 | 116 | 210 | 285 | 540 | 2 | 17.5 | M24 |
| RF167 | 550 | 450h6 | 500 | 5 | 22 | 210 | 430 | 790 | 120m6 | 32 | 127 | 250 | 324 | 670 | 2 | 17.5 | M24 |
